150 mm x 150 mm clear opening to 1400 mm x 1400 mm clear opening
EN 124 , AS 3996 , SABS , AASHTO H20 Highway Load etc.
Custom Logo and Special Lettering.
Bitumen, Spray Painting , Epoxy , Galvanizing
Bolted, Special Lock, Hinged etc.
| Country | Standard | Equivalent Grades of Grey Iron | |
| ISO | ISO 185 | 200 | 250 |
| China | GB 9439 | HT200 | HT250 |
| USA | ASTM A48 | NO.30 | NO.35 |
| Germany Austria | DIN 1691 | GG20 | GG25 |
| European | EN 1561 | EN-GJL-200 | EN-GJL-250 |
| Japan | JIS G5501 | FC200 | FC250 |
| Italy | UNI 5007 | G20 | G25 |
| France | NF A32-101 | FGL200 | FGL250 |
| UK | BS 1452 | 200 | 250 |
| India | IS 210 | FG200 | FG260 |
| Spain | UNF | FG20 | FG25 |
| Belgium | NBN 830-01 | FGG20 | FGG25 |
| Australia | AS 1830 | T220 | T260 |
| Sweden | SS 14 01 | O120 | O125 |
| Norway | NS11 100 | SJG200 | SJG250 |
| Country | Standard | Equivalent Grades of Ductile Iron | |
| ISO | ISO 1083 | 400-15 / 400-18 | 500-7 |
| China | GB 1348 | QT400-18 | QT500-7 |
| USA | ASTM A536 | 60-40-18 | 70-50-05 |
| Germany Austria | DIN 1693 | GGG40 | GGG50 |
| European | EN 1563 |
EN-GJS-400-15 EN-GJS-400-18 |
EN-GJS-500-7 |
| Japan | JIS G5502 | FCD400 | FCD500 |
| Italy | UNI 4544 | GS370-17 | GS500-7 |
| France | NF A32-201 | FGS370-17 | FGS500-7 |
| UK | BS 2789 | 400/17 | 500/7 |
| India | IS 1865 | SG370/17 | SG500/7 |
| Spain | UNF | FGE38-17 | FGE50-7 |
| Belgium | NBN 830-02 | FNG38-17 | FNG50-7 |
| Australia | AS 1831 | 300-17/ 400-12 | 500-7 |
| Sweden | SS 14 07 | 0717-02 | 0727-02 |
| Norway | NS11 301 | SJK-400.3/ SJK-400 | SJK-500 |

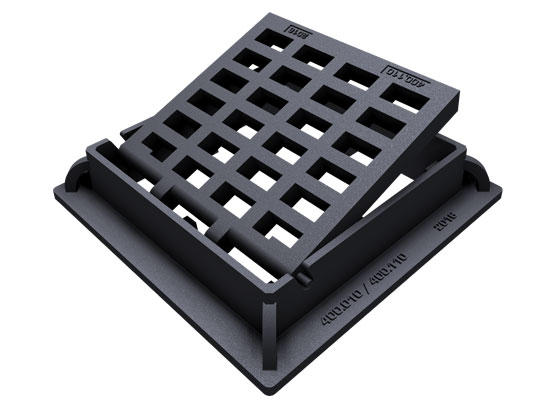

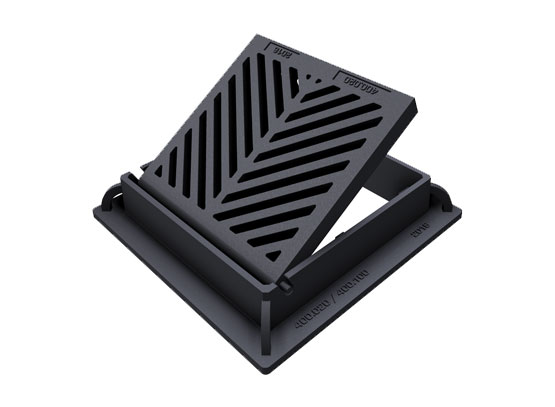

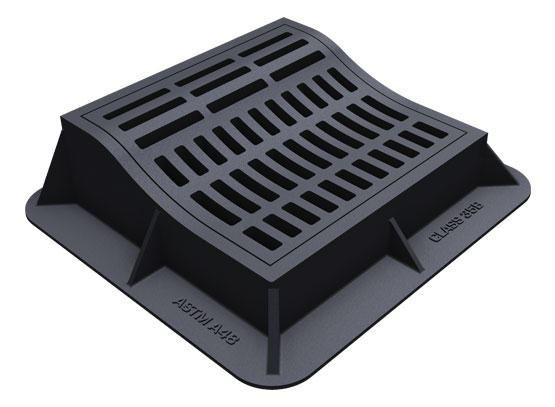

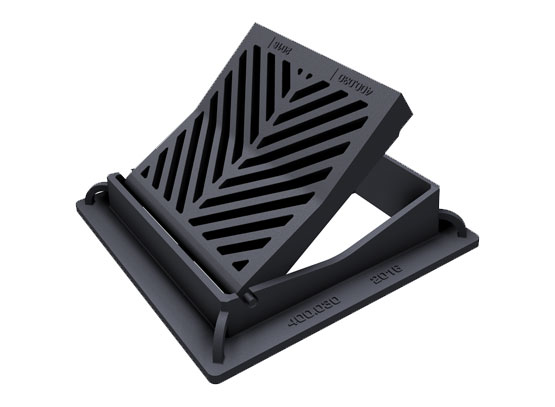

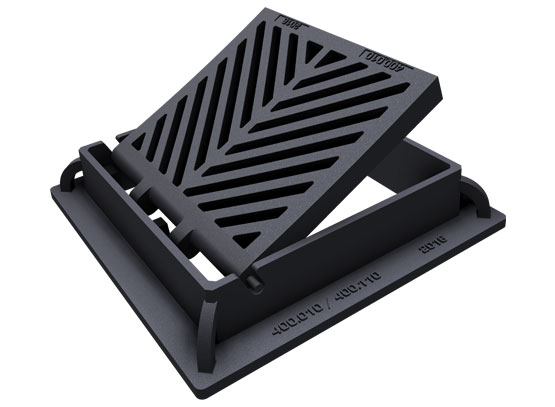

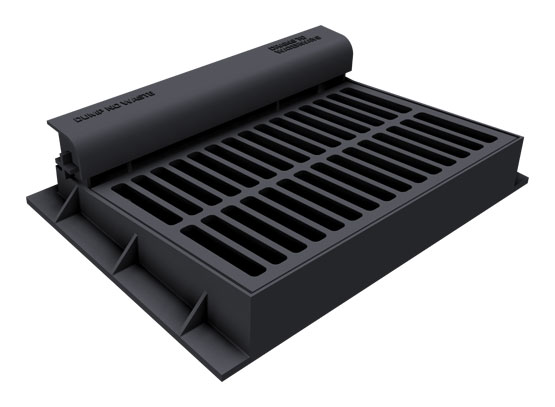

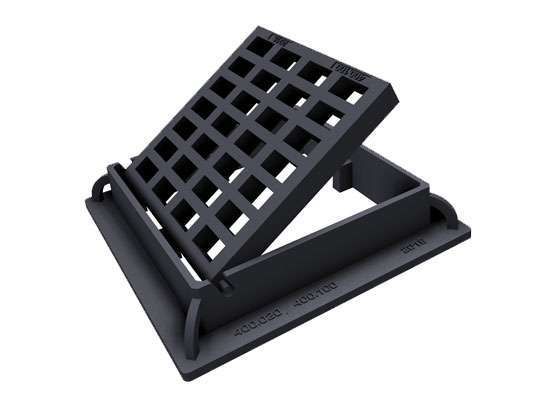

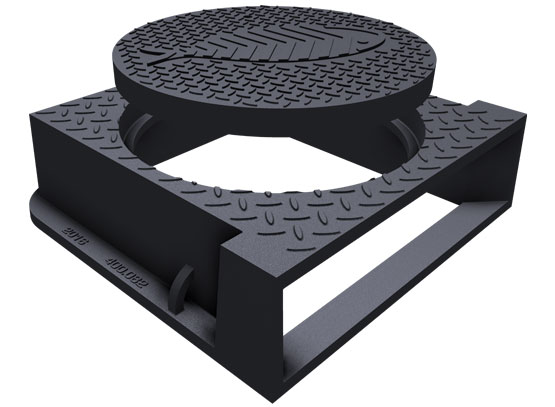

Catch Basins are manufactured using high-quality materials such as grey cast iron and ductile iron, ensuring strength, durability and resistance to heavy loads, making them suitable for long-term drainage and infrastructure applications.
Catch Basins are available in a wide size range, typically from 150 mm × 150 mm up to 1400 mm × 1400 mm clear openings, offering flexibility to suit different drainage requirements and infrastructure applications.
Catch Basins are designed in accordance with international standards such as EN 124, ensuring reliable load performance and suitability for applications ranging from pedestrian areas to heavy-duty roadway infrastructure.
Well-engineered Catch Basins enhance drainage efficiency by enabling smooth water flow while trapping debris, helping prevent blockages and ensuring effective stormwater management across urban and industrial environments.
Yes, Welcast Catch Basins are available for export, supporting infrastructure projects across multiple global regions with consistent quality, durability and compliance with international requirements.
